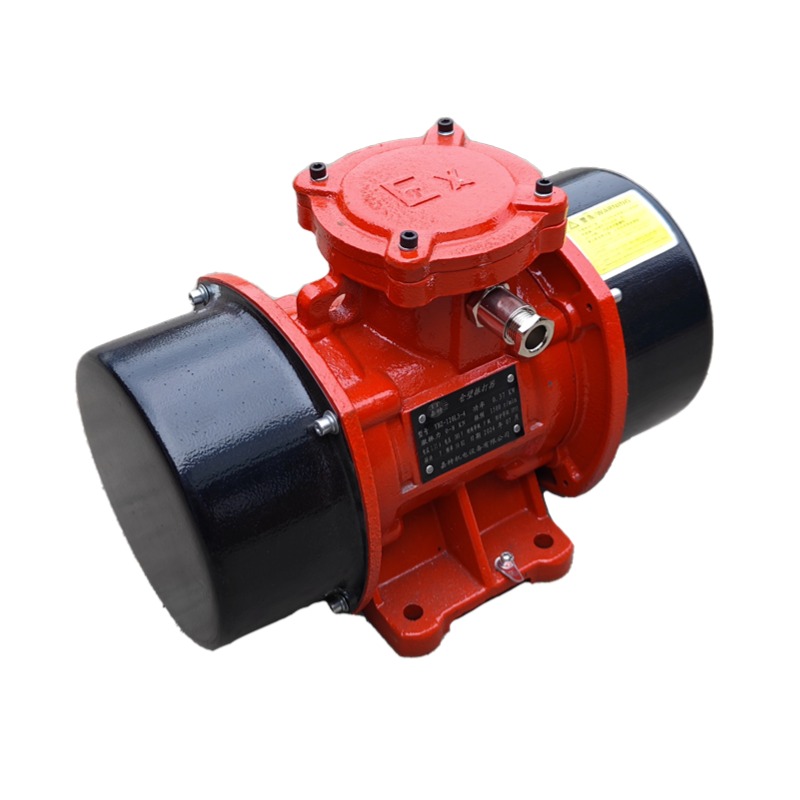

YBZH series high efficiency Dust explosion-proof three-phase asynchronous vibration motor

It is applicable to all dust explosion-proof scenarios Class III + Class II gas / BT4 environment.

Product overview

Industrial Motor Built for Reliable Daily Operation



OEM/ODM ServiceMeet various needs
Get CatalogWide range of models
Get Price ListEconomical price
1 Year WarrantyQuality assurance
Construction and performance

Application Field

1. Cement / concrete precast mould, vibrating table connector support mould, vibration forming machine, vibrating screen, separating screen, ceramic screen, drainage pipe, furnace lining replacement of foundry machinery and packaging machinery.

2. Grain / coal / cement/ concrete silo.

3. Vibration unloading of warehouse / container / carriage / casting sandbox.

4. Filtration device, vibrating feeder, vibrating conveying trough.

5. Vibrating conveying pipeline, vibrating screw conveying.

False standard vibration force and power lead to vibration, inferior copper wire hot-rolled silicon steel, motor is easy to burn out, unstable amplitude and low penetration rate lead to frequent blockage.

Key advantages

Main Advantages of Generation YBZH Series Motor

1. 3-phase 380V, strong power, stable amplitude, less heat generation and long life.

2. Strict selection: material cold-rolled silicon steel/oxygen-free copper wire.

3. Thickened feet: provide stable support.

4. QT400 nodular cast iron body: the sealed structure is suitable for various harsh environments.

5. Oxygen-free copper wire: machine can achieve the automatic winding and embedding with high precision and high consistency.

6. Cold-rolled silicon steel: high-speed stamping, one-time forming, automatic lamination, resistance reducing.

7. Insulation varnish dipping: high-quality insulating varnish dipped twice to improve insulation

8. Bearings: special copper-clad bracket bearings for vibration motors, capable of withstanding large impact loads

Technical data

Product Parameters

Edit the rows and columns below to match the official product data sheet. The table scrolls
horizontally on smaller screens without cutting off the page.

Product application

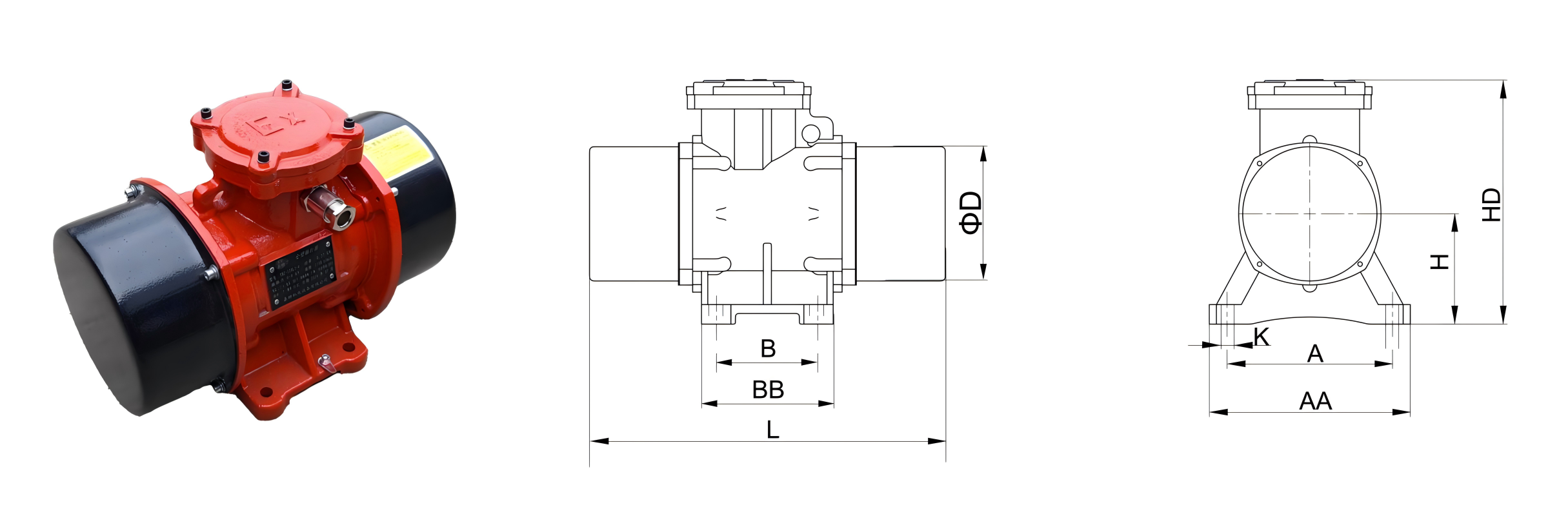

MODEL Installation Dimensions Overall Dimensions
A B K H AA BB HA L HD
YBZH 2.5-2 180 110 4-14 125 210 160 21 372 290
2.5-4 180 110 4-14 125 225 148 20 357 275
2.5-6 180 110 4-14 130 210 160 21 372 290
5-2 180 110 4-14 130 225 148 20 357 275
5-4 180 110 4-14 125 225 148 20 357 275
5-6 180 140 4-18 130 225 148 20 357 275
8-2 180 110 4-14 130 210 160 21 372 290
8-4 180 110 4-14 130 225 148 20 357 275
8-6 180 140 4-18 145 282 235 28 510 335
10-2 180 110 4-14 130 222 182 20 434 303
10-4 180 140 4-18 130 221 182 20 408 303
10-6 220 160 4-18 145 282 235 28 510 335
16-2 180 140 4-18 145 282 235 28 510 335
16-4 220 160 4-18 145 282 235 28 510 335
16-6 260 180 4-26 165 320 260 35 610 385
20-2 220 160 4-18 145 320 260 35 610 385
20-4 220 160 4-18 145 282 235 28 510 335
20-6 260 180 4-26 165 320 260 35 610 385
30-2 260 180 4- 26 145 320 260 35 610 385
30-4 260 180 4-26 165 320 260 35 610 385
30-6 320 200 4-33 210 400 315 35 680 430
40-4 260 180 4-26 165 320 260 35 610 385
40-6 320 200 4-33 210 400 315 35 680 430
50-4 320 200 4-33 210 400 315 35 680 430
50-6 370 200 4-39 235 463 365 35 775 510
75-4 320 200 4-33 210 463 365 35 775 510
75-6 370 250 4-39 230 460 315 35 720 550
100-4 370 200 4-39 220 460 315 35 720 550
100-6 440 140 6-45 245 555 400 40 780 680
120-6 480 140 6-45 245 555 400 40 830 680
130-4 370 250 4-39 230 460 315 35 720 550
130-6 480 140 6-45 245 555 400 40 1110 680
160-6 520 140 8- 45 260 596 540 40 1125 680
180-6 520 140 8-45 260 596 540 40 1125 680
5-8 220 160 4-26 145 282 235 28 510 335
10-8 260 180 4- 26 165 320 260 35 610 385
20-8 320 200 4-33 210 463 365 35 775 510
30-8 370 250 4-39 230 460 315 35 720 550
50-8 480 140 6-45 245 555 400 40 855 550

Vibration motors with different voltages can be redesigned according to the specific requirements of users
