Motor product

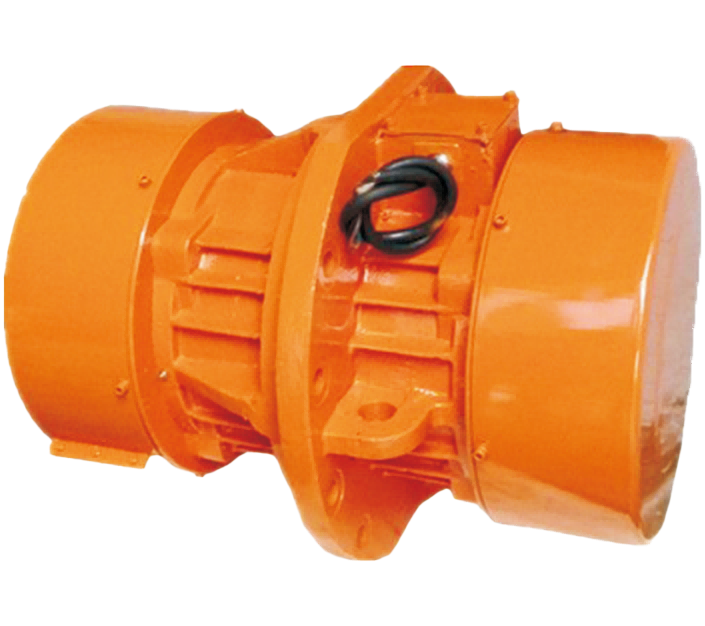

VBCB side plate vibration motor

electric power, building materials, coal, chemical industry, mining, metallurgy, light industry, casting and other industries, mainly suitable for large-scale screening equipment.

Product overview

Industrial Motor Built for Reliable Daily Operation



OEM/ODM ServiceMeet various needs
Get CatalogWide range of models
Get Price ListEconomical price
1 Year WarrantyQuality assurance
Construction and performance

Main Advantages of YBCB Motor

1. The side plate type three-phase asynchronous vibration motor saves the complicated motor bottom plate structure of ordinary vibration motors.

2. The motor is directly installed on the side plate of the machine, which can make the vibration machine realize circular motion or linear motion, and at the same time reduce the weight of the vibration machine and meet the rigidity requirements of the machine body.

3. Reduce mechanical energy consumption, easy installation and maintenance, large single machine excitation force, long life.

Key advantages

How to achieve higher efficiency?

The side plate vibration motor can be directly installed on the wall of the vibrating screen. The two motors installed on the opposite surface can realize synchronous vibration through a coupling shaft to enhance the vibration effect. The vibration effect is better if it is directly installed on the screen wall.

Technical data

Product Parameters

Edit the rows and columns below to match the official product data sheet. The table scrolls
horizontally on smaller screens without cutting off the page.

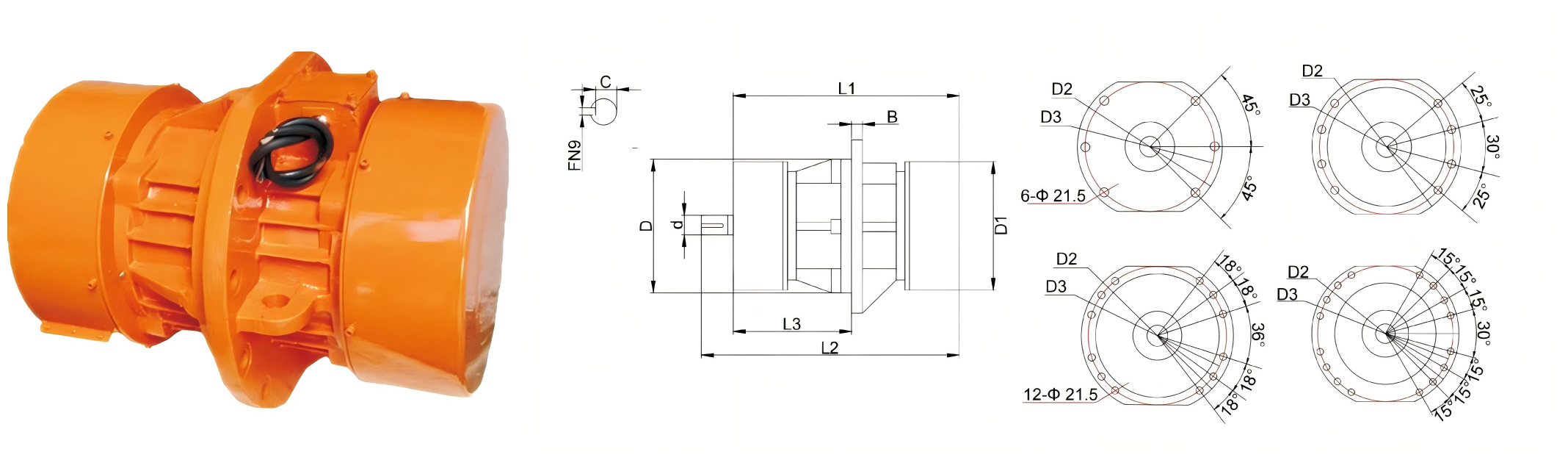

Product application
MODEL Maximum Excitation Force
N		 Rated Power
KW		 Rated current
A		 Synchronous Speed
r/min		 Installation Dimensions(mm) Overall Dimensions(mm) WEIGHT
Kg
A B H K AB BB HD G L
1.5-2 1500 0.12 0.36 3000 130 80 80 12 170 118 200 19 245 13
2.5-2 2500 0.22 0.6 130 80 80 12 170 118 200 19 245 13
3-2 3000 0.25 0.6 150 90 90 14 185 124 220 21 270 18
5-2 5000 0.37 0.9 150 90 90 14 185 124 220 21 270 19
10-2 10000 0.75 1.75 180 110 112 18 225 155 238 27 335 30.5
15-2 15000 1.1 2.3 220 140 125 22 272 190 265 32 385 43
20-2 20000 1.5 3.1 260 150 140 26 344 234 320 42 452 87
30-2 30000 2.2 4.8 310 170 170 33 400 270 365 57 505 116
1.0-4 1000 0.09 0.34 1500 130 80 80 12 170 118 220 19 245 13
1.5-4 1500 0.12 0.4 130 80 80 12 170 118 220 19 245 14
3-4 3000 0.18 0.6 150 90 90 14 185 124 220 21 270 20
5-4 5000 0.25 0.74 180 110 112 18 225 155 238 27 335 28
8-4 8000 0.4 1.1 180 110 112 18 225 155 238 27 335 28
10-4 10000 0.55 1.5 220 140 125 22 272 190 265 32 335 43
15-4 15000 0.75 1.9 260 150 140 26 344 234 320 42 452 75
20-4 20000 1.1 2.6 260 150 140 26 344 234 320 42 452 84
30-4 30000 1.5 3.6 310 170 170 33 400 270 365 57 505 105
50-4 50000 2.2 5.1 350 220 200 39 450 313 425 52 600 198
75-4 75000 3.7 7.9 380 250 220 45 480 350 465 67 670 327
100-4 10000 6.3 14 440 280 240 38 530 435 520 65 750 405
120-4 12000 7.5 18 440 280 240 38 530 435 520 65 750 120
3-6 3000 0.25 0.92 1000 180 110 112 18 225 155 238 27 335 31
5-6 5000 0.37 1.2 220 140 125 22 272 190 265 32 385 45
8-6 8000 0.55 1.7 220 140 125 22 272 190 265 32 385 52
10-6 10000 0.75 2.2 260 150 140 26 344 234 320 42 452 75
15-6 15000 1.1 3.1 310 170 170 33 400 270 365 57 505 117
20-6 20000 1.5 4.0 310 170 170 33 400 270 365 57 505 121
30-6 30000 2.2 5.6 350 220 200 39 450 313 425 52 600 210
40-6 40000 3.0 7.2 350 220 200 39 450 313 425 52 600 218
50-6 50000 3.7 8.3 380 250 220 45 480 350 465 67 670 324
75-6 75000 5.5 12.5 440 140 240 6-45 570 410 500 47 730 431
100-6 100000 7.5 18.5 440 140 240 6-45 570 410 500 47 730 515
120-6 120000 9.0 20 440 140 240 6-45 570 410 500 47 730 556
10-6B 10000 0.75 1.2 1000 220 140 125 22 272 190 238 32 385 45
20-6B 20000 1.5 4.0 260 150 140 26 344 234 320 42 452 82
30-6B 10000 2.2 5.4 310 170 170 33 400 270 365 57 505 145
50-6B 50000 3.7 8.3 350 220 200 39 450 313 425 52 600 250
75-6B 75000 5.5 12.5 380 250 220 45 480 350 465 67 670 375

Vibration motors with different voltages can be redesigned according to the specific requirements of users

Engineering support

Need Help Selecting the Right Motor?

Send your application, required power, voltage, speed, duty cycle, quantity, and delivery destination. Our team
will review the operating conditions before quotation.
