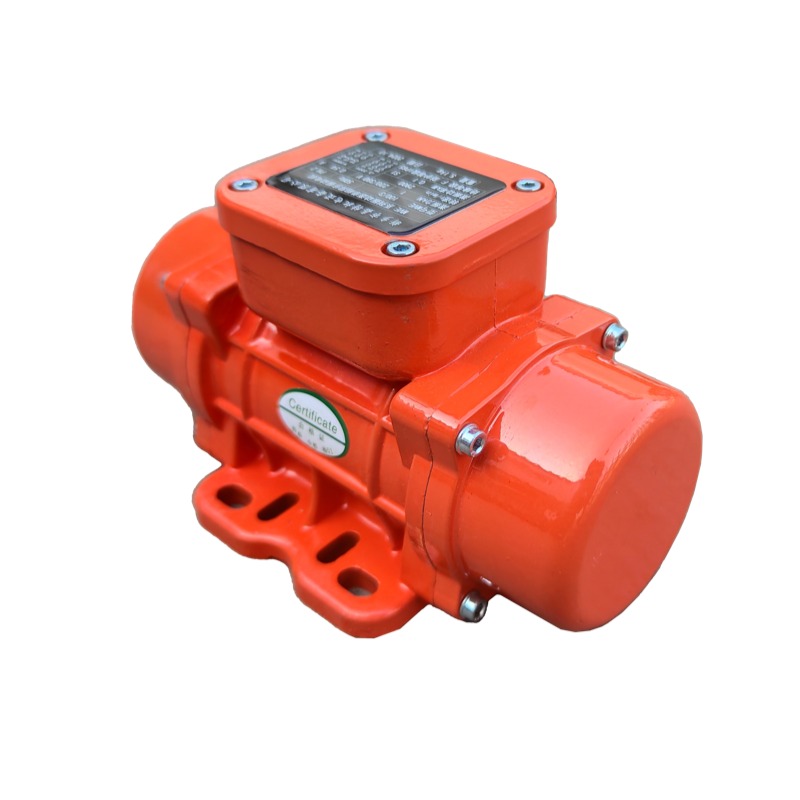

MVE Series Three-Phase Asynchronous Vibration Motor

concrete mixing plant, concrete vibrator, activation hopper, linear screen, fluidized bed, shakeout machine, etc.

Product overview

Industrial Motor Built for Reliable Daily Operation



OEM/ODM ServiceMeet various needs
Get CatalogWide range of models
Get Price ListEconomical price
1 Year WarrantyQuality assurance
Construction and performance

Why Choose MVE Motor?

1. Replace the Italian OLI brand with the same installation size and European standard.

2. Our motor size can perfectly replace OLI with excellent price, fast delivery, and good service. We also provide small batch customization services.

3. Small aluminum shell, large iron shell, European standard, high-strength zinc-aluminum alloy raw materials.

4. Processing technology: high-precision brigade die-casting. High protection level, small size, long life.

Main Advantages of MVE Motor

Main Advantages of Generation MVE Series Motor

1. Structure: Redesign the casing and make molds to make the structure more reasonable.

2. Efficiency: According to the requirements of the JB/T11819-2014 standard, it achieves the purpose of high efficiency and energy saving. 3. The protection level is IP55, and IP65 is available. The junction box is fully sealed.

3. One-piece sealing structure, oil resistance, shock resistance, oxidation resistance, high temperature resistance, precision noise reduction, exciting force can be adjusted steplessly, to meet the needs of various equipment and work.

4. Cold-rolled silicon steel, oxygen-free copper wire, machine winding consistency is high, thickened zinc-aluminum alloy body is integrally formed and fully sealed, thickened feet provide stable support.

5. Non-oriented electrical steel large-slot coils use sufficient copper, and vibration motors are specially made copper-clad bracket bearings, able to withstand large impact loads, thickened base/strong and vibration-resistant. Smooth processing surface, lower friction coefficient, better fit equipment.

6. Enhance the transmission of vibration force, the protective cover is equipped with an upper sealing ring to improve the protection level, the special protective cover avoids deformation and damage during transportation and use, the all-aluminum body is sprayed with plastic, never rusts, has high strength performance, and has good heat dissipation , The motor is durable, and the high-quality rubber sealing ring completely prevents external dust from entering, and more effectively protects the bearing and the inside of the motor. The eccentric block can be adjusted, and the exciting force can be adjusted steplessly by adjusting the angle of the eccentric block.

Technical data

Product Parameters

Edit the rows and columns below to match the official product data sheet. The table scrolls
horizontally on smaller screens without cutting off the page.

Product application

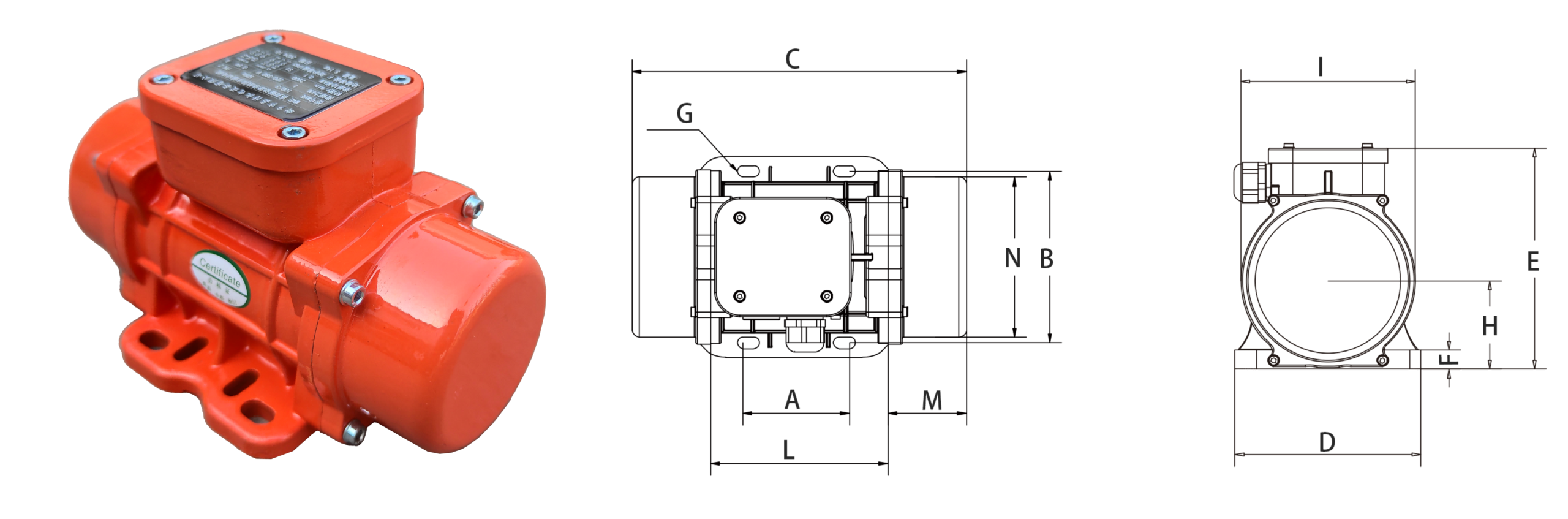

MODEL A B G C D E F H I L M N MOTOR CONNECTOR
MVE40/3 39 92 65 176 110 82.5 10 41 77 112 32 75 M18*1.5
MVE60/3 62-74 106 9 215 130 131 11 49.5 94 121 47 88 M16*1.5
MVE100/3 62-74 106 9 225 130 131 11 49.5 94 121 52 88 M16*1.5
MVE200/3 62-74 106 9 233 130 155 13 65 119 123 55 111 M20*1.5
MVE300/3 90 125 13 270 155 175 14 78 142 163 47 134 M20*1.5
MVE400/3 90 125 13 270 155 175 14 78 142 163 47 134 M20*1.5
MVE500/3 105 140 13 338 170 197 22 92.5 168 178 80 159 M20*1.5
MVE700/3 105 140 13 338 170 197 22 92.5 168 178 80 159 M20*1.5
MVE800/3 120 170 17 325 208 210 24 95 180 205 60 170 M20*1.5
MVE1200/3 120 170 17 325 208 210 24 95 180 205 60 170 M20*1.5
MVE1300/3 120 170 17 325 208 210 24 95 180 205 60 170 M20*1.5
MVE1600/3 140 190 17 417 230 262 30 122 237 225 96 222 M27*1.5
MVE1800/3 140 190 17 417 230 262 30 122 237 225 96 222 M27*1.5
MVE2000/3 140 190 17 417 230 262 30 122 237 225 96 222 M27*1.5
MVE2200/3 140 190 17 417 230 262 30 122 237 225 96 222 M27*1.5
MVE2300/3 140 190 17 417 230 262 30 122 237 225 96 222 M27*1.5
MVE3200/3 155 255 25 529 300 318 37 150 281 281 124 264 M32*1.5
MVE4000/3 155 255 25 529 300 318 37 150 281 281 124 264 M32*1.5
MVE5000/3 155 255 25 529 300 318 37 150 281 281 124 264 M32*1.5
MVE6500/3 200 320 28 630 388 402 42 206 400 370 130 378 M32*1.5
MVE9000/3 200 320 28 630 388 402 42 206 400 370 130 378 M32*1.5
MVE12000/3 125 380 39 663 446 415 42 206 400 403 130 378 M32*1.5
MVE15000/3 125 380 39 663 446 415 42 206 400 403 130 378 M32*1.5
MVE50/1 90 125 13 307 155 175 14 78 142 163 72 134 M20*1.5
MVE100/1 90 125 13 307 155 175 14 78 142 163 72 134 M20*1.5
MVE200/1 105 140 13 338 170 197 22 92 168 178 80 159 M20*1.5
MVE300/1 120 170 17 395 208 210 24 95 180 205 95 170 M20*1.5
MVE400/1 120 170 17 457 208 210 24 95 180 205 126 170 M20*1.5
MVE500/1 120 170 17 458 208 210 24 95 180 205 126 170 M20*1.5
MVE800/1 140 190 17 465 230 262 30 122 237 225 120 222 M27*1.5
MVE1100/1 140 190 17 515 230 262 30 122 237 225 145 222 M27*1.5
MVE1400/1 140 190 17 565 230 262 30 122 237 225 170 222 M27*1.5
MVE1500/1 140 190 17 565 230 262 30 122 237 225 170 222 M27*1.5
MVE1600/1 140 190 17 565 230 262 30 122 237 225 170 222 M27*1.5
MVE1620/1 155 225 23.5 558 308 318 34 146 281 278 140 264 M27*1.5
MVE2100/1 155 225 23.5 602 308 318 34 146 281 278 162 264 M27*1.5
MVE2600/1 155 255 25 701 300 318 37 150 281 281 210 264 M32*1.5
MVE3000/1 155 255 25 701 300 318 37 150 281 281 210 264 M32*1.5
MVE3800/1 180 280 26 688 335 353 35 170 335 322 183 311 M32*1.5
MVE4700/1 180 280 26 738 335 353 35 170 335 322 208 311 M32*1.5
MVE5200/1 200 320 28 709 388 402 42 206 400 369 170 378 M32*1.5
MVE6500/1 200 320 28 709 388 402 42 206 400 369 170 378 M32*1.5
MVE8000/1 200 320 28 779 388 402 42 206 400 369 205 378 M32*1.5
MVE9000/1 200 320 28 779 388 402 42 206 400 369 205 378 M32*1.5
MVE10000/1 125 380 39 926 446 415 42 206 400 406 260 378 M32*1.5
MVE13000/1 125 380 39 966 446 415 42 206 400 406 280 378 M32*1.5
MVE15000/1 140 480 45 1075 570 540 48 268 510 563 256 490 M32*1.5
MVE17500/1 140 480 45 1075 570 540 48 268 510 563 256 490 M32*1.5
MVE19500/1 140 480 45 1075 570 540 48 268 510 563 256 490 M32*1.5
MVE22000/1 140 520 45 1130 620 590 42 297 560 560 285 530 M32*1.5
MVE25000/1 140 520 45 1130 620 590 42 297 560 560 285 530 M32*1.5
MVE30000/1 140 600 45 1198 740 627 59 320 615 684 257 595 M32*1.5
MVE150/0.75 105 140 13 338 170 197 22 92 168 178 80 159 M20*1.5
MVE250/0.75 120 170 17 395 208 210 24 95 180 205 95 170 M20*1.5
MVE400/0.75 120 170 17 458 208 210 24 95 180 205 126 170 M20*1.5
MVE650/0.75 140 190 17 445 230 262 30 122 237 225 110 222 M25*1.5
MVE900/0.75 140 190 17 505 230 262 30 122 237 225 140 222 M25*1.5
MVE1300/0.75 155 255 25 591 300 318 34 150 281 281 155 264 M32*1.5
MVE2100/0.75 155 255 25 701 300 318 37 150 281 281 210 264 M32*1.5
MVE3100/0.75 180 280 26 688 335 353 37 170 335 322 183 311 M32*1.5
MVE3800/0.75 180 280 26 738 335 353 35 170 335 322 208 311 M32*1.5
MVE4200/0.75 200 320 28 709 388 402 42 203 400 369 170 378 M32*1.5
MVE5300/0.75 200 320 28 709 388 402 42 203 400 369 170 378 M32*1.5
MVE6500/0.75 200 320 28 779 388 402 42 203 400 369 205 378 M32*1.5
MVE10000/0.75 125 380 39 966 446 415 42 206 400 406 280 378 M32*1.5

Vibration motors with different voltages can be redesigned according to the specific requirements of users
